| Total Weight | 1750 kg |
| Standard bucket capacity | 0.05 m³ |
| Rated power | 14.8/2200 kW/rpm |
Specification Parameter
Basic Parameters
| Total Weight | 1750kg |
| Standard bucket capacity | 0.05m³ |
Performance Parameter
| Engine | Laidong |
| Engine rated power | 14.8/2200 kW/rpm |
| Gradeability | 30° |
| Maximum digging force of stick | 8 kN |
| Bucket excavation | 12.5 kN |
| Driving speed | 2km/h |
| Platform rotation speed | 9-11 rpm |

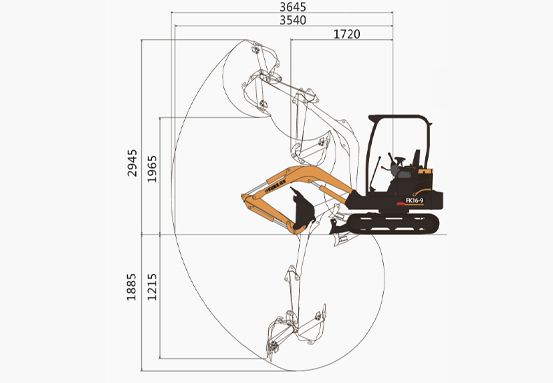

Job Parameters
| Maximum digging height | 2945 mm |
| Maximum digging depth | 1885 mm |
| Maximum digging radius | 3645 mm |
| Maximum ground excavation radius | 3540 mm |
| Maximum unloading height | 1965 mm |
| Minimum radius of gyration | 1720 mm |
| Maximum vertical digging depth | 1215mm |

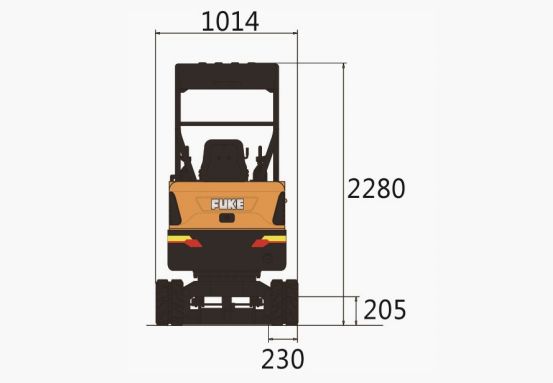

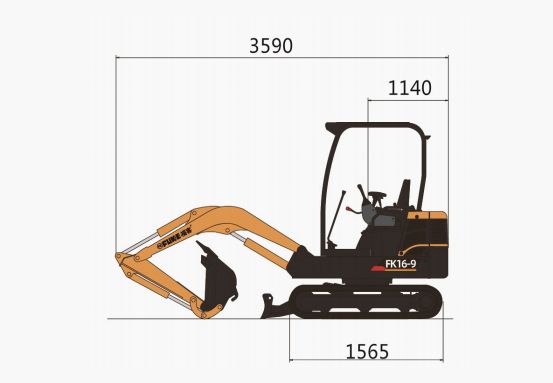

Transport size
| Overall length (transport state) | 3590mm |
| Overall width (transport state) | 1014mm |
| Overall height(transport state) | 2280mm |
Other parameters
| Track width | 990 mm |
| Track length | 1565 mm |
| Track shoe width | 230 mm |
| Minimum ground clearance | 190 mm |
| Balance weight off the ground | 470 mm |
| Radius of tail gyration | 1140 mm |
| Fuel tank capacity | 20L |
| Hydraulic oil tank capacity | 22L |
