| Total Weight | 31640 kg |
| Standard bucket capacity | 1.43 m³ |
| Rated power | 186/252.9 kW/ps |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 31640kg | |
| Standard bucket capacity | 1.43m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 186/252.9 kW/ps | |
| Gradeability | 35° | |
| Maximum digging force of stick | 128 kN | |
| Maximum digging force of bucket | 175 kN | |
| Driving speed | 3.1-5.2km/h | |
| Platform rotation speed | 10-11 rpm | |

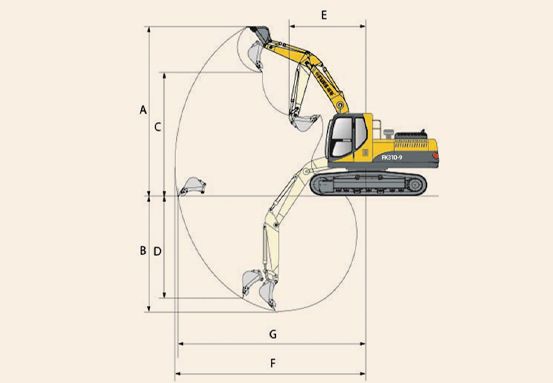

| Job Parameters | ||
| Maximum digging height | 10190 mm | A |
| Maximum digging depth | 7305 mm | B |
| Maximum digging radius | 7165 mm | C |
| Maximum ground excavation radius | 5745 mm | D |
| Maximum unloading height | 3825 mm | E |
| Minimum radius of gyration | 10620 mm | F |
| Maximum vertical digging depth | 10420 mm | G |

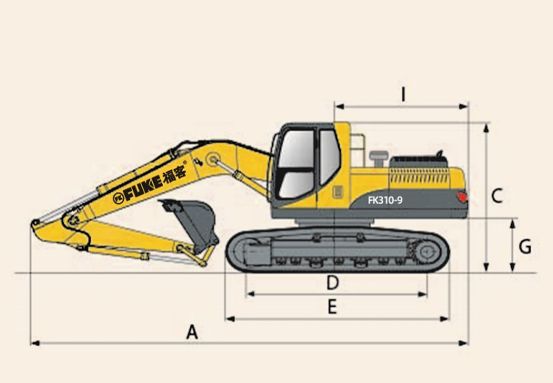

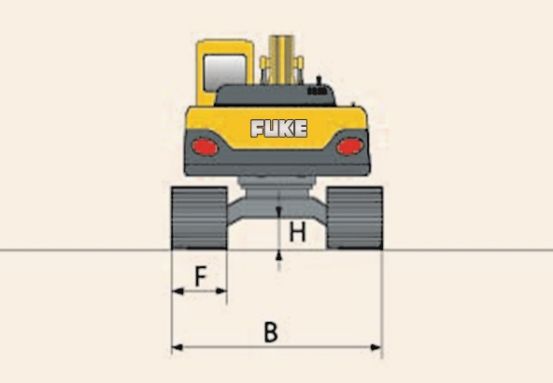

| Transport size | ||
| Overall length (transport state) | 10795 mm | A |
| Overall width (transport state) | 3260 mm | B |
| Overall height(transport state) | 3160 mm | C |
| Other parameters | ||
| Bucket width | 1463 mm | |
| Wheelbase | 4030 mm | D |
| Track length | 4961 mm | E |
| Track width | 600mm | F |
| Counterweight ground clearance | 1244 mm | G |
| Minimum ground clearance | 530 mm | H |
| Radius of tail gyration | 3308 mm |
Specification Parameter
