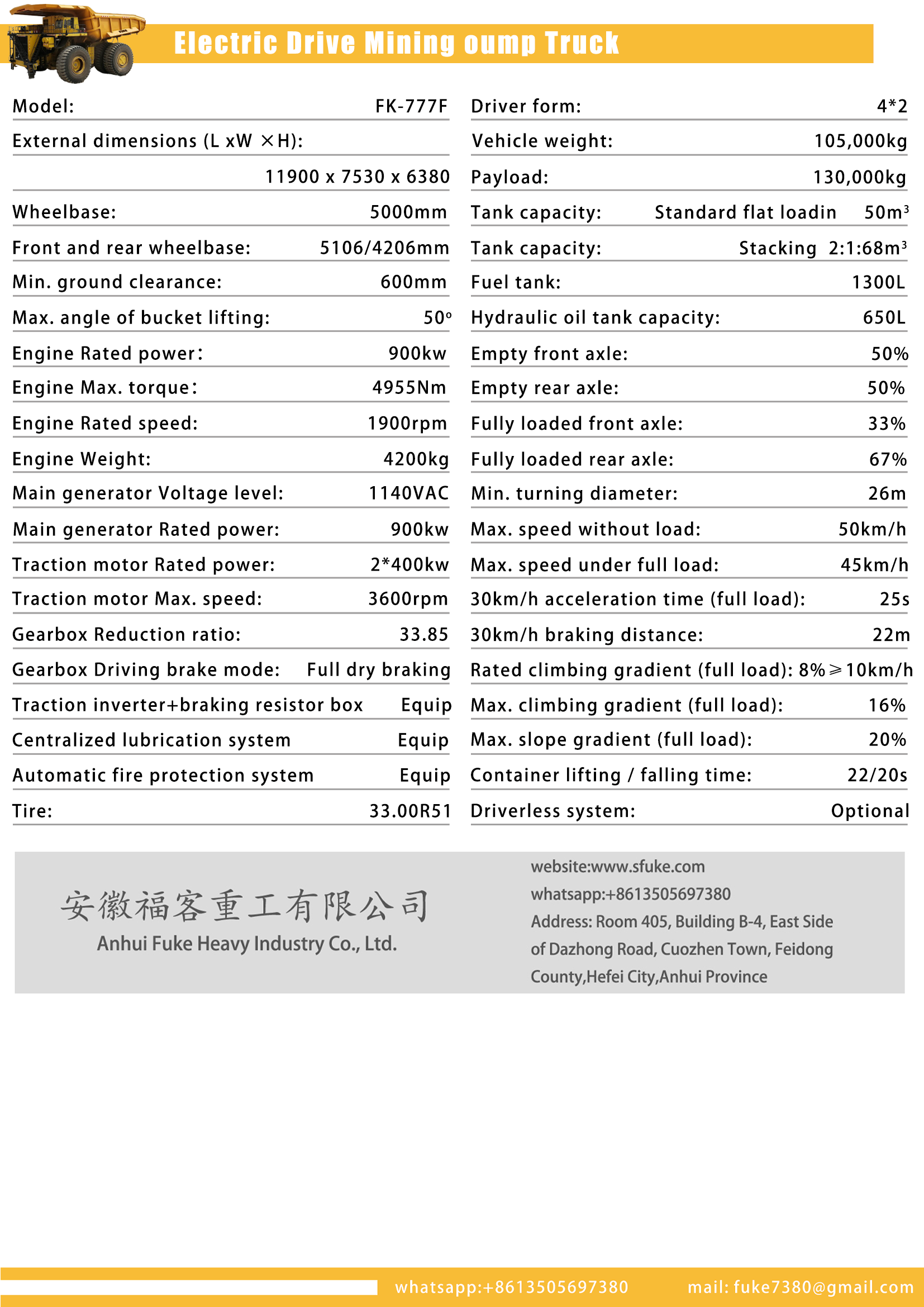

Basic Parameters
FK-777F
| Model | FK-777F |
| Driver form | 4*2 |
| External dimensions (L xW ×H) | 11900 x 7530 x 6380 |
| Vehicle weight | 105,000kg |
| Wheelbase | 5000mm |
| Payload | 130,000kg |
| Front and rear wheelbase | 5106/4206mm |
| Tank capacity (Standard flat loadin) | 50m³ |
| Min. ground clearance | 600mm |
| Tank capacity (Stacking 2:1) | 68m³ |
| Max. angle of bucket lifting | 50° |
| Fuel tank | 1300L |
| Engine Rated power | 900kw |
| Hydraulic oil tank capacity | 650L |
| Engine Max. torque | 4955Nm |
| Empty front axle | 50% |
| Engine Rated speed | 1900rpm |
| Empty rear axle | 50% |
| Engine Weight | 4200kg |
| Fully loaded front axle | 33% |
| Main generator Voltage level | 1140VAC |
| Fully loaded rear axle | 67% |
| Main generator Rated power | 900kw |
| Min. turning diameter | 26m |
| Traction motor Rated power | 2*400kw |
| Max. speed without load | 50km/h |
| Traction motor Max. speed | 3600rpm |
| Max. speed under full load | 45km/h |
| Gearbox Reduction ratio | 33.85 |
| 30km/h acceleration time (full load) | 25s |
| Gearbox Driving brake mode | Full dry braking |
| 30km/h braking distance | 22m |
| Traction inverter + braking resistor box | Equip |
| Rated climbing gradient (full load) | 8% ≈ 10km/h |
| Centralized lubrication system | Equip |
| Max. climbing gradient (full load) | 16% |
| Automatic fire protection system | Equip |
| Max. slope gradient (full load) | 20% |
| Tire | 33.00R51 |
| Container lifting / falling time | 22/20s |
| Driverless system | Optional |
