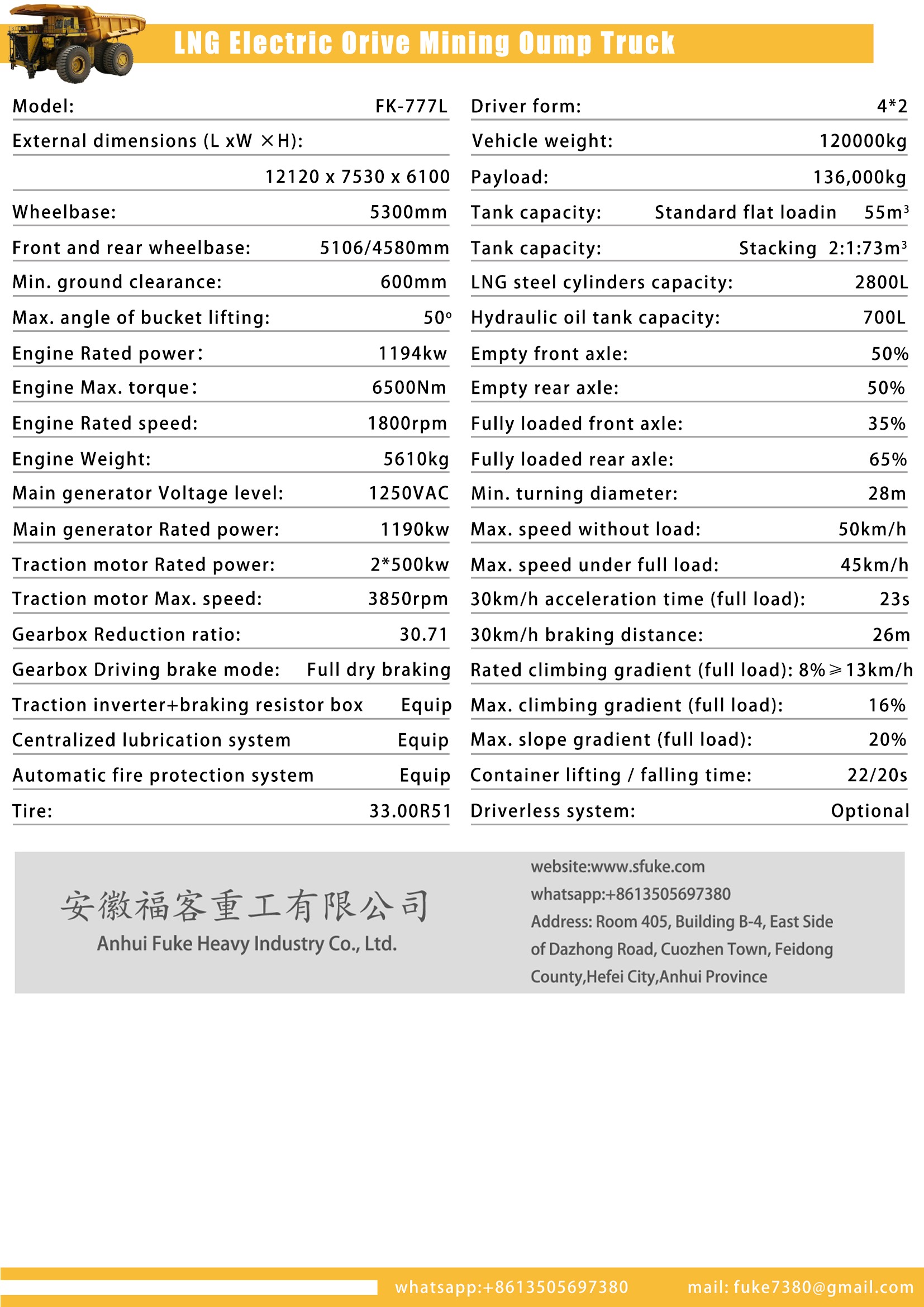

FK-777L
| Model | FK-777L |
| Vehicle Type | LNG Electric Drive Mining Dump Truck |
| Driver form | 4*2 |
| External dimensions (L xW ×H) | 12120 x 7530 x 6100 |
| Vehicle weight | 120000kg |
| Wheelbase | 5300mm |
| Payload | 136,000kg |
| Front and rear wheelbase | 5106/4580mm |
| Tank capacity (Standard flat loadin) | 55m³ |
| Min. ground clearance | 600mm |
| Tank capacity (Stacking 2:1) | 73m³ |
| Max. angle of bucket lifting | 50° |
| LNG steel cylinders capacity | 2800L |
| Engine Rated power | 1194kw |
| Hydraulic oil tank capacity | 700L |
| Engine Max. torque | 6500Nm |
| Empty front axle | 50% |
| Engine Rated speed | 1800rpm |
| Empty rear axle | 50% |
| Engine Weight | 5610kg |
| Fully loaded front axle | 35% |
| Main generator Voltage level | 1250VAC |
| Fully loaded rear axle | 65% |
| Main generator Rated power | 1190kw |
| Min. turning diameter | 28m |
| Traction motor Rated power | 2*500kw |
| Max. speed without load | 50km/h |
| Traction motor Max. speed | 3850rpm |
| Max. speed under full load | 45km/h |
| Gearbox Reduction ratio | 30.71 |
| 30km/h acceleration time (full load) | 23s |
| Gearbox Driving brake mode | Full dry braking |
| 30km/h braking distance | 26m |
| Traction inverter + braking resistor box | Equip |
| Rated climbing gradient (full load) | 8% ≈ 13km/h |
| Centralized lubrication system | Equip |
| Max. climbing gradient (full load) | 16% |
| Automatic fire protection system | Equip |
| Max. slope gradient (full load) | 20% |
| Tire | 33.00R51 |
| Container lifting / falling time | 22/20s |
| Driverless system | Optional |
