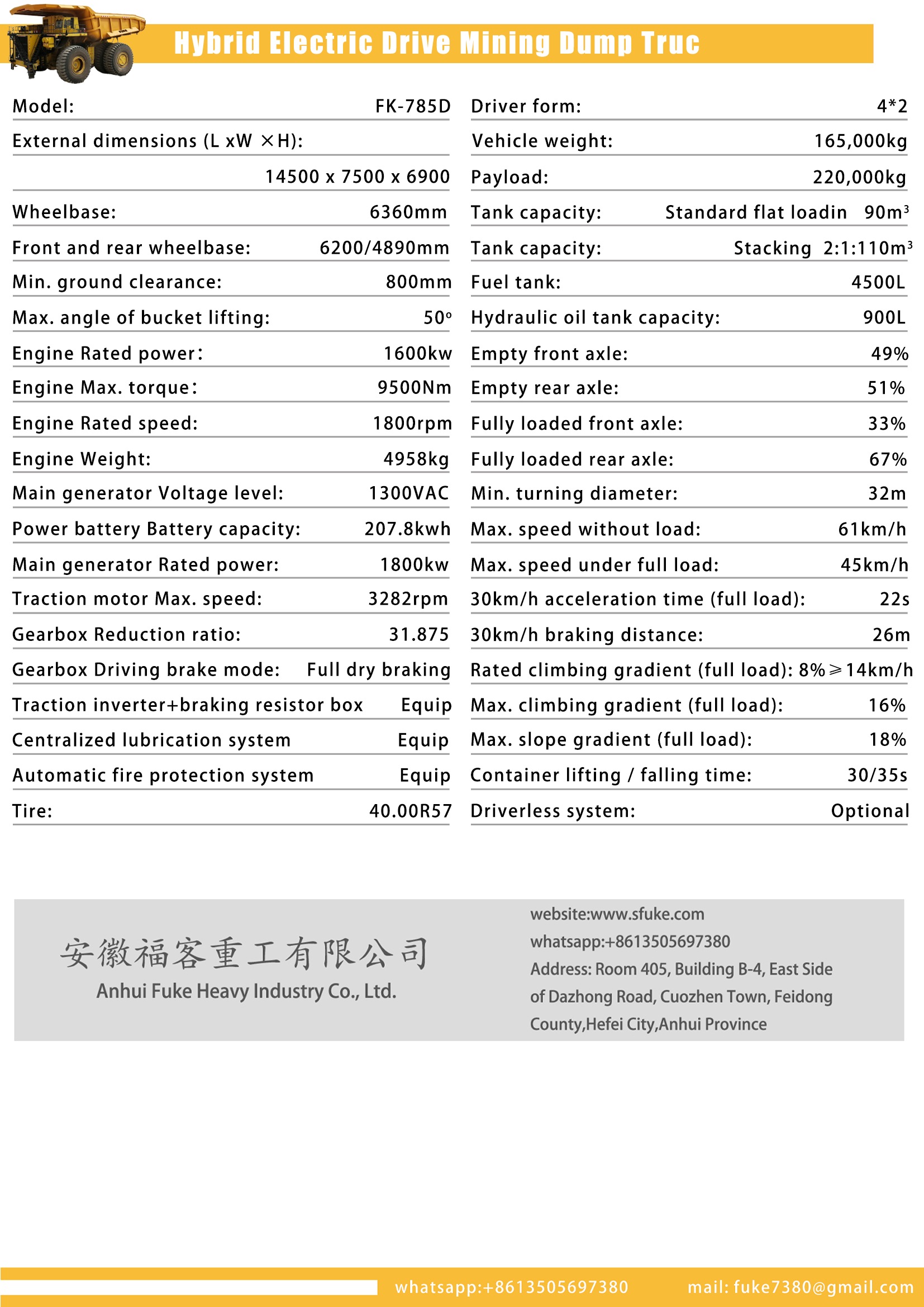

Basic Parameters
FK-785D
| Model | FK-785D |
| Driver form | 4*2 |
| External dimensions (L xW ×H) | 14500 x 7500 x 6900 |
| Vehicle weight | 165,000kg |
| Wheelbase | 6360mm |
| Payload | 220,000kg |
| Front and rear wheelbase | 6200/4890mm |
| Tank capacity (Standard flat loadin) | 90m³ |
| Min. ground clearance | 800mm |
| Tank capacity (Stacking 2:1) | 110m³ |
| Max. angle of bucket lifting | 50° |
| Fuel tank | 4500L |
| Engine Rated power | 1600kw |
| Hydraulic oil tank capacity | 900L |
| Engine Max. torque | 9500Nm |
| Empty front axle | 49% |
| Engine Rated speed | 1800rpm |
| Empty rear axle | 51% |
| Engine Weight | 4958kg |
| Fully loaded front axle | 33% |
| Main generator Voltage level | 1300VAC |
| Fully loaded rear axle | 67% |
| Power battery Battery capacity | 207.8kwh |
| Min. turning diameter | 32m |
| Main generator Rated power | 1800kw |
| Max. speed without load | 61km/h |
| Traction motor Max. speed | 3282rpm |
| Max. speed under full load | 45km/h |
| Gearbox Reduction ratio | 31.875 |
| 30km/h acceleration time (full load) | 22s |
| Gearbox Driving brake mode | Full dry braking |
| 30km/h braking distance | 26m |
| Traction inverter + braking resistor box | Equip |
| Rated climbing gradient (full load) | 8% ≈ 14km/h |
| Centralized lubrication system | Equip |
| Max. climbing gradient (full load) | 16% |
| Automatic fire protection system | Equip |
| Max. slope gradient (full load) | 18% |
| Tire | 40.00R57 |
| Container lifting / falling time | 30/35s |
| Driverless system | Optional |
