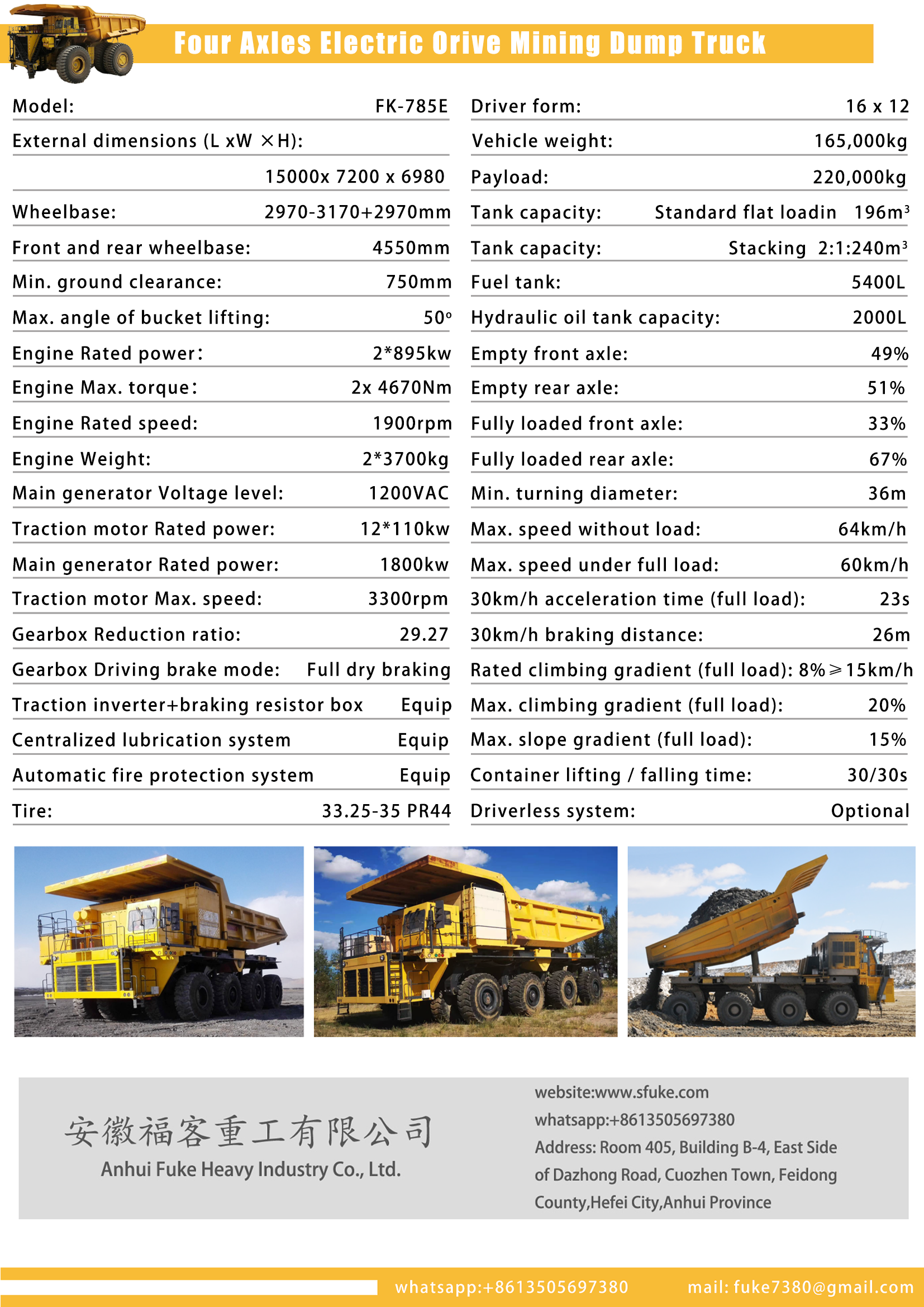

Basic Parameters
FK-785E
| Model | FK-785E |
| Driver form | 16 x 12 |
| External dimensions (L xW ×H) | 15000x 7200 x 6980 |
| Vehicle weight | 165,000kg |
| Wheelbase | 2970 - 3170 + 2970mm |
| Payload | 220,000kg |
| Front and rear wheelbase | 4550mm |
| Tank capacity (Standard flat loadin) | 196m³ |
| Min. ground clearance | 750mm |
| Tank capacity (Stacking 2:1) | 240m³ |
| Max. angle of bucket lifting | 50° |
| Fuel tank | 5400L |
| Engine Rated power | 2*895kw |
| Hydraulic oil tank capacity | 2000L |
| Engine Max. torque | 2x 4670Nm |
| Empty front axle | 49% |
| Engine Rated speed | 1900rpm |
| Empty rear axle | 51% |
| Engine Weight | 2*3700kg |
| Fully loaded front axle | 33% |
| Main generator Voltage level | 1200VAC |
| Fully loaded rear axle | 67% |
| Traction motor Rated power | 12*110kw |
| Min. turning diameter | 36m |
| Main generator Rated power | 1800kw |
| Max. speed without load | 64km/h |
| Traction motor Max. speed | 3300rpm |
| Max. speed under full load | 60km/h |
| Gearbox Reduction ratio | 29.27 |
| 30km/h acceleration time (full load) | 23s |
| Gearbox Driving brake mode | Full dry braking |
| 30km/h braking distance | 26m |
| Traction inverter + braking resistor box | Equip |
| Rated climbing gradient (full load) | 8% ≈ 15km/h |
| Centralized lubrication system | Equip |
| Max. climbing gradient (full load) | 20% |
| Automatic fire protection system | Equip |
| Max. slope gradient (full load) | 15% |
| Tire | 33.25 - 35 PR44 |
| Container lifting / falling time | 30/30s |
| Driverless system | Optional |
