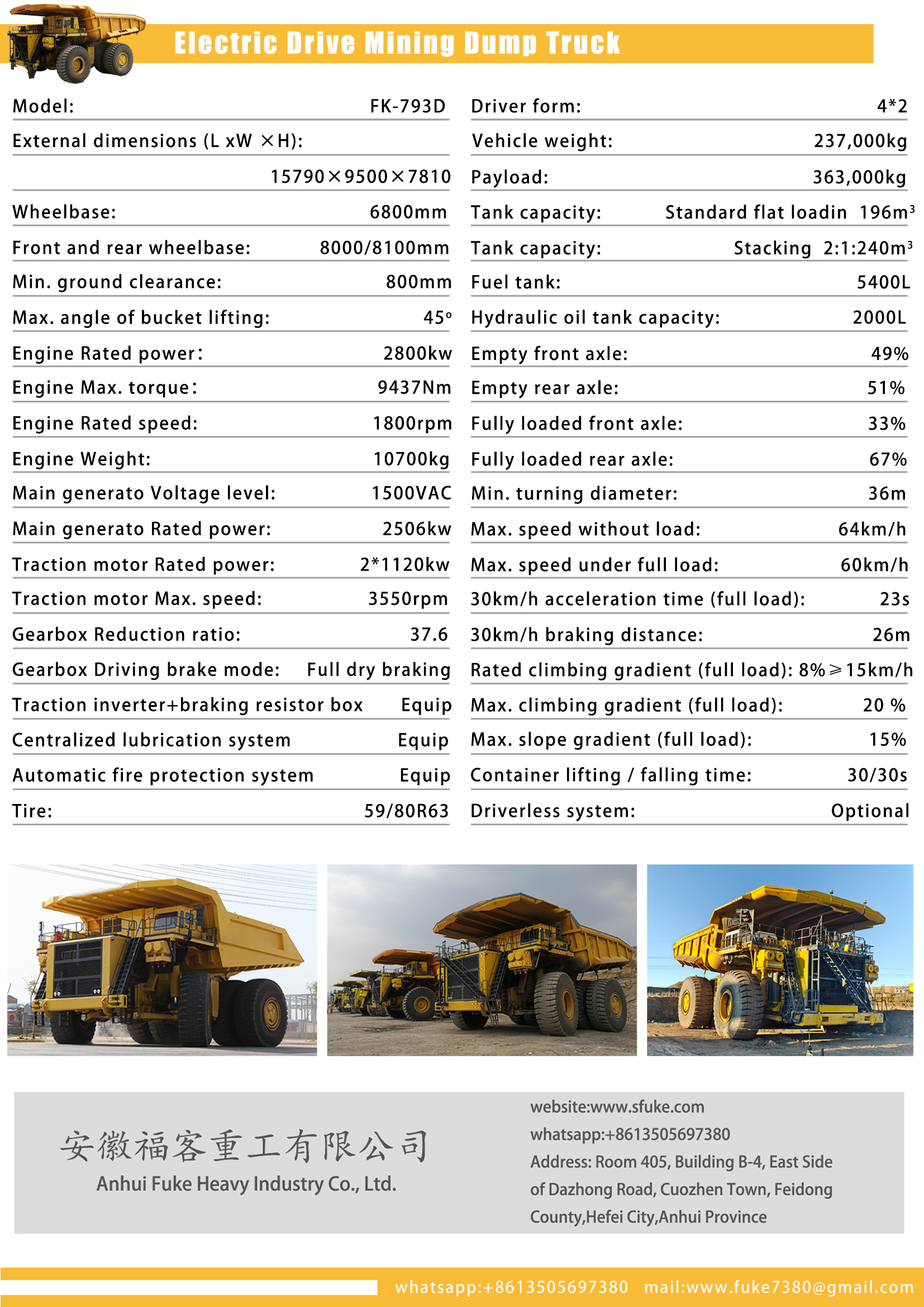

Basic Parameters
FK-793D
| Model | FK-793D |
| Driver form | 4*2 |
| External dimensions (L xW ×H) | 15790×9500×7810 |
| Vehicle weight | 237,000kg |
| Wheelbase | 6800mm |
| Payload | 363,000kg |
| Front and rear wheelbase | 8000/8100mm |
| Tank capacity (Standard flat loadin) | 196m³ |
| Min. ground clearance | 800mm |
| Tank capacity (Stacking 2:1) | 240m³ |
| Max. angle of bucket lifting | 45° |
| Fuel tank | 5400L |
| Engine Rated power | 2800kw |
| Hydraulic oil tank capacity | 2000L |
| Engine Max. torque | 9437Nm |
| Empty front axle | 49% |
| Engine Rated speed | 1800rpm |
| Empty rear axle | 51% |
| Engine Weight | 10700kg |
| Fully loaded front axle | 33% |
| Main generator Voltage level | 1500VAC |
| Fully loaded rear axle | 67% |
| Main generator Rated power | 2506kw |
| Min. turning diameter | 36m |
| Traction motor Rated power | 2*1120kw |
| Max. speed without load | 64km/h |
| Traction motor Max. speed | 3550rpm |
| Max. speed under full load | 60km/h |
| Gearbox Reduction ratio | 37.6 |
| 30km/h acceleration time (full load) | 23s |
| Gearbox Driving brake mode | Full dry braking |
| 30km/h braking distance | 26m |
| Traction inverter + braking resistor box | Equip |
| Rated climbing gradient (full load) | 8% ≈ 15km/h |
| Centralized lubrication system | Equip |
| Max. climbing gradient (full load) | 20% |
| Automatic fire protection system | Equip |
| Max. slope gradient (full load) | 15% |
| Tire | 59/80R63 |
| Container lifting / falling time | 30/30s |
| Driverless system | Optional |
