| Bucket capacity | 0.2m3 |
| Rated power | 18.4kw |
| Operating load | 300kg |
| Wheelbase | 801mm |

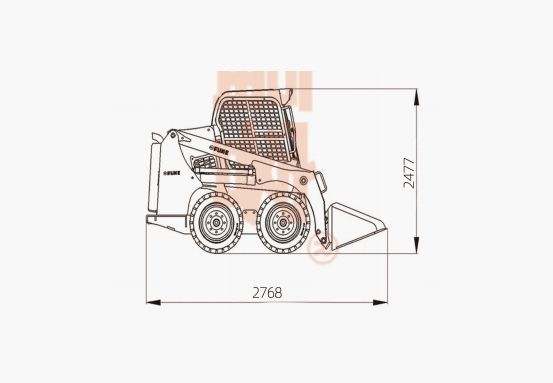

Specification Parameter
| Operating load (kg) | 300 |
| Max Speed(km/h) | 9 |
| Rated flux(L/min) | 50 |
| Tire(track) model | 5.7-12 |
| Ratedpower(Kw) | 18.4 |
| Fuel tank capacity (L) | 25 |
| self weight bucket (kg) | 1300 |
| Bucket capacity(m3) | 0.2 |
| Overall operating height(mm) | 3401 |
| height to top of cab(mm) | 1812 |
| Height to bottom of level bucket(mm) | 2477 |
| Overall length ithout bucket(mm) | 2090 |
| overall length with bucket(mm) | 2768 |

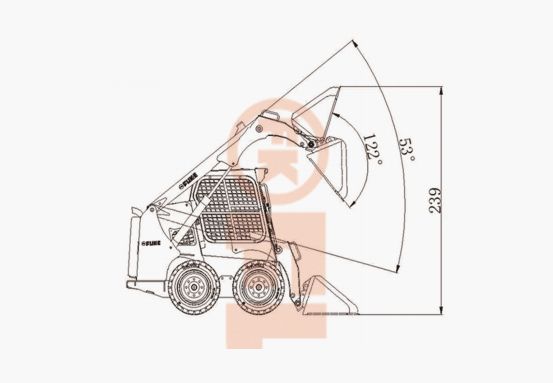

| Dumping angle at maximum height(°) | 36 |
| Dumpingheight(mm) | 1990 |
| Dumping reach(mm) | 419 |
| Rollback o bucket on ground(") | 25 |
| Rollback of bucket at full height(°) | 97 |
| Wheelbase(mm) | 801 |
| Groundclearance(mm) | 129 |
| Angleof departure(°) | 28 |
| Front turning radins without bucket(mm) | 971 |
| Front tuning radius(mm) | 1557 |
| Rear tuning radius(mm) | 1146 |
| Rear axle to bumper(mm) | 738 |
| Tread width,enterline to centerline(mm) | 747 |

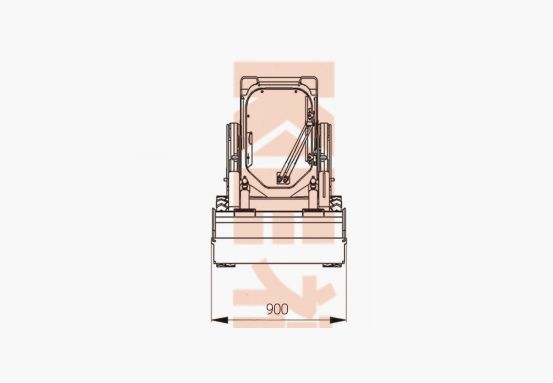

| Width(mm) | 880 |
Specification Parameter
