| Total Weight | 13600 kg |
| Standard bucket capacity | 0.58m³ |
| Rated power | 85.4/2200 kW/rpm |
Specification Parameter
| Basic Parameters | ||
| Total Weight | 13600 kg | |
| Standard bucket capacity | 0.58m³ | |
| Performance Parameter | ||
| Engine | Cummins | |
| Engine rated power | 85.4/2200 kW/rpm | |
| Gradeability | 70%(35°) | |
| Maximum digging force of stick | 74.2kN | |
| Bucket excavation | 82.7 kN | |
| Driving speed | 30 km/h | |
| Platform rotation speed | 13 r/min | |

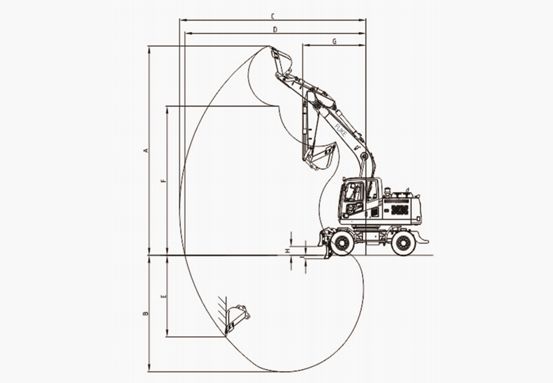

| Job Parameters | ||
| Maximum digging height | 8498mm | A |
| Maximum digging depth | 4685mm | B |
| Maximum digging radius | 7900mm | C |
| Maximum digging radius on the ground | 7668mm | D |
| Maximum vertical digging depth | 4300mm | E |
| Maximum unloading height | 6055mm | F |
| Boom length | 4600mm | G |

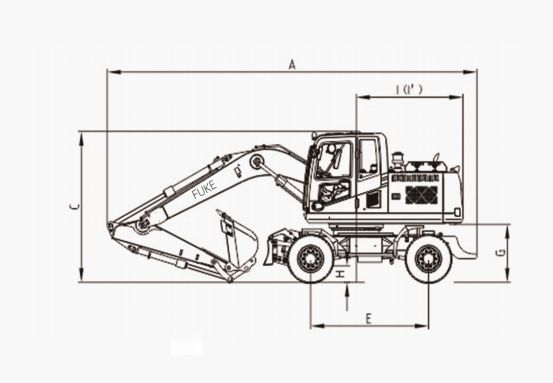

| Transport size | ||
| Overall length (transport state) | 7785mm | |
| Overall width (transport state) | 2500mm | |
| Overall height(transport state) | 3158mm | |
| Other parameters | ||

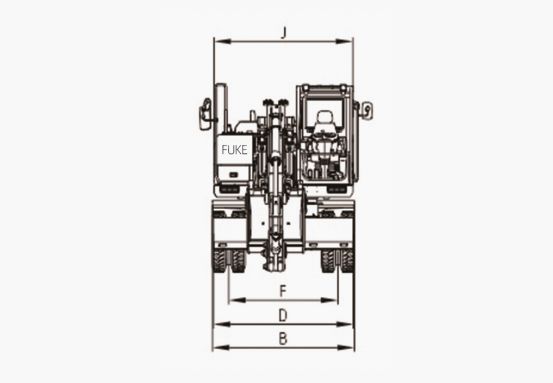

| Wheelbase | 2600mm | E |
| Axle track | 1944 mm | F |
| Counterweight ground clearance | 1260mm | G |
| Minimum ground clearance | 378 mm | H |
| Tail length | 2290mm | |
| Fueltank capacity | 270 L | |
| Hydraulic oil tank capacity | 125L | |
| Working pressure of slewing system | 270 bar |
